Bamboo Strip Planing Machine
Our company is the most world famous supplier of bamboo flooring making machines.
We can supply both solid bamboo flooring making machine &
also strand woven bamboo flooring machines.We supply both hot pressing machine & cold pressing machines for the board.
Machine Quality is our top priority.
We also offer you a complete service of project plan, budget, installation and training.
Choosing us means choosing the best machine supplier.
We have professional team to make machine, installation of machine and also help all customers
to produce qualified products.
The Machine List of Making Normal BambooFurniture Board Or Normal Bamboo Flooring
(Solid Bamboo Flooring(vertical/horizontal)
1. Raw Bamboo Sawer (SawingMachine
2. Bamboo Splitting Machine
3. Carbonizing Boiler
4. Elementary Bamboo Strip Making Machine
5. Further High Speed FurtherPlaning Machine
6. Glue Adding Machine
7. Normal Solid Bamboo FlooringMachine (Press)
8. Sanding Machine
9. Trimming Machine for board.
If you wish to know more information aboutour product line, welcome to send email to us.
Email:angelzhou1224@gmail.com Angelzhou1224@hotmail.com
MOB: +186 5710 6860
Skype: angel12242008
Contact Person: Angel Zhou
Company Name: Besta Bamboo Machine Co.,Limited.
We will provide the machine photos, accessories and packaging pictures for our customers, etc. to the customer beforeshipment. Our machinery (Besta machine) is mainly exported to India, Indonesia, Thailand, Myanmar, Nigeria, Tanzania, Cameroon, Brazil, Mexico and Colombia. Our company's wood machinery has always insisted on innovation and continuous research and development of new machines, as well as better performance equipment.
Q: What's the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don’t worry, you will receive the parcel in good condition.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can learn by themselves.

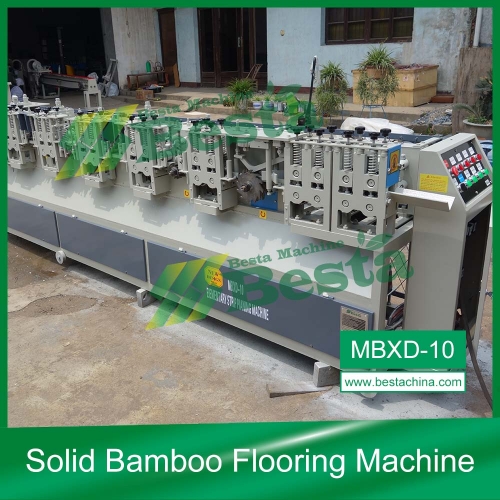

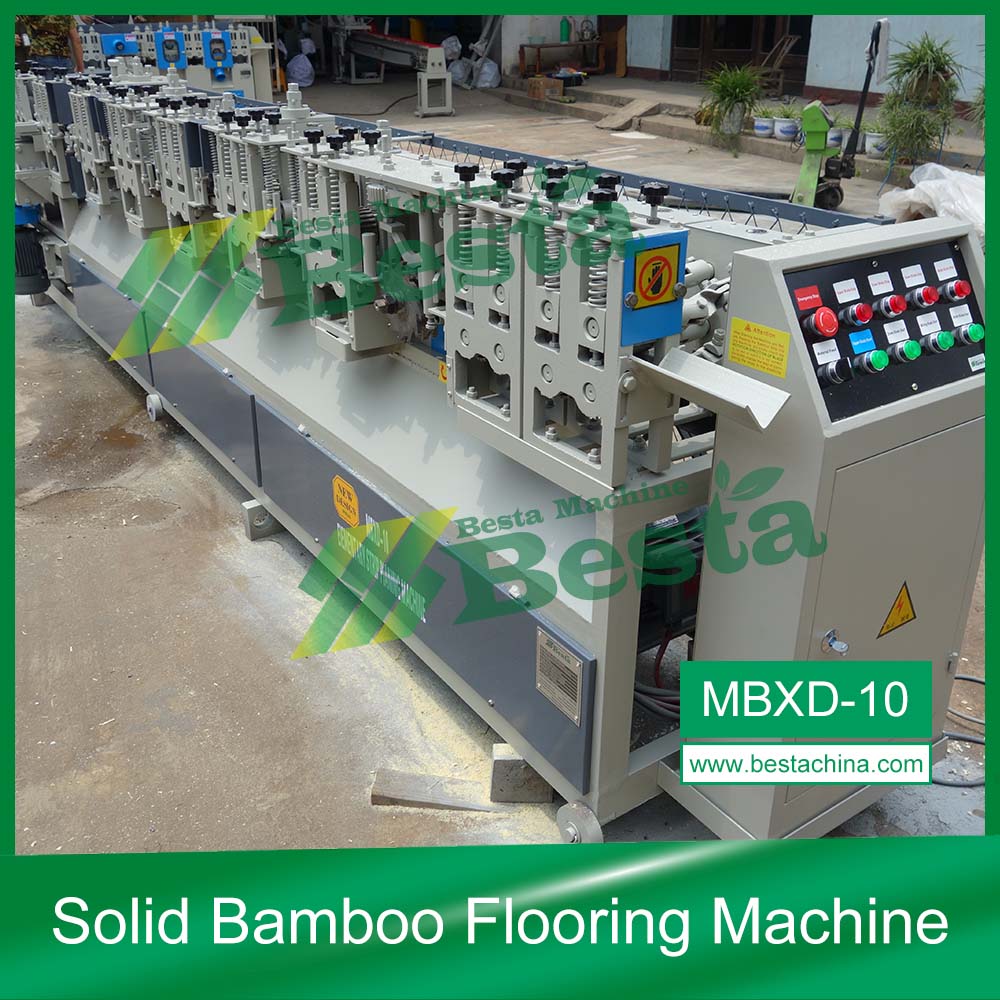

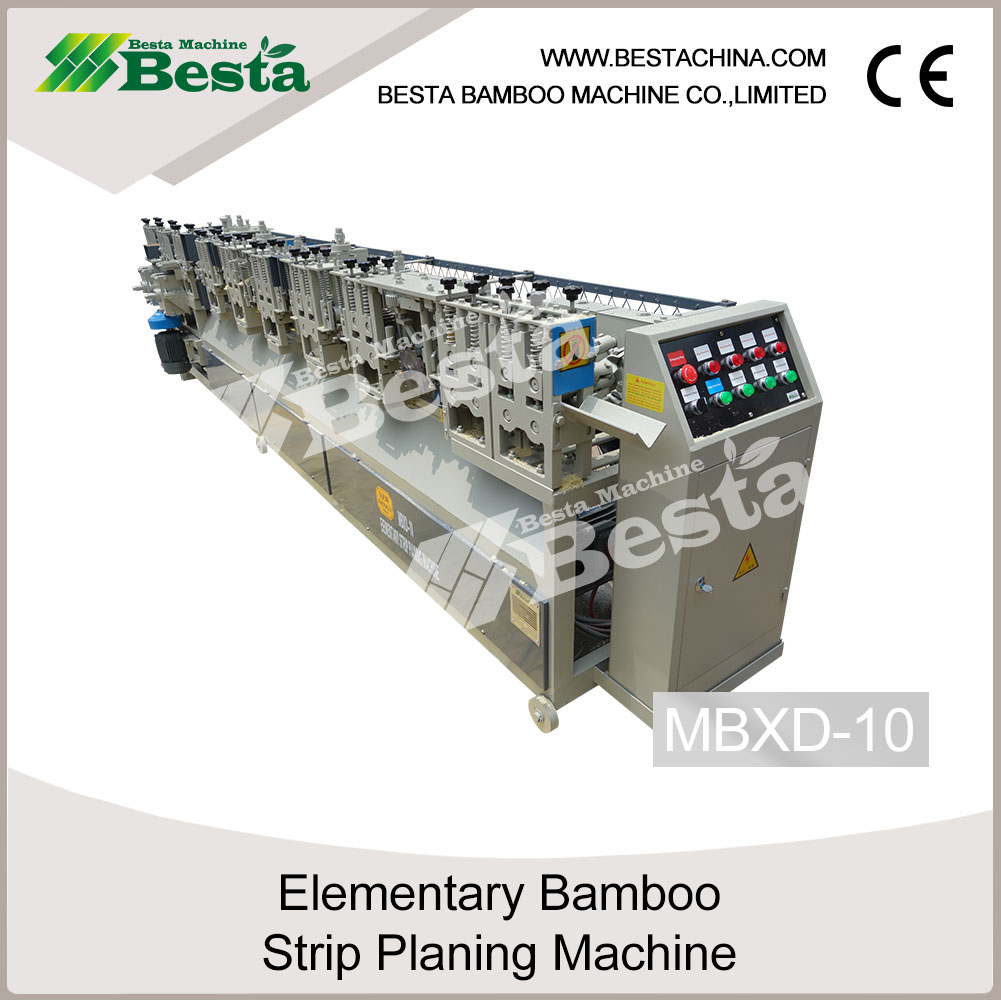

MBXD-10 Elementary Strip Planing Machine
Application: Bamboo Strip Planing, Normal Bamboo Flooring Machine
|
MODEL |
MBXD-10 |
|
NAME |
ELEMENTARY STRIP PLANING MACHINE |
|
BLADE OUT DIAMETER |
Φ80 MM |
|
BLADE INNER DIAMETER |
Φ25.4 MM |
|
BLADE ROTATING SPEED |
4900 RPM |
|
PROCESSING THICKNESS |
5 TO 15 MM |
|
PROCESSING WIDTH |
16 TO 30 MM |
|
FEEDING SPEED |
46 METER/MIN |
|
TOTAL POWER |
28.5 KW |
|
NET WEIGHT |
1300 KGS |
|
GROSS WEIGHT |
1380 KGS |
|
MECHANICAL SIZE |
4500*750*1100MM |
|
PACKING SIZE |
4600*850*1200MM |
|
FUNCTION: It is used for planning for side of the bamboo strips and making it straight and smooth. APPLICATION: Bamboo Furniture Board Making/Flooring Making |
|
Key Word:
Bamboo Strip Planing Machine, Bamboo Strip Width/Thickness Setting Machine, Normal Bamboo Flooring Making Machine
If you wish to know more about this machine,do not hesitate to send emal to us. Thank you.
Name: Bamboo Strip Planing Machine
Function: Knot removing, four side planing of the bamboo strip, setting the width/thickness of strips.
Application: Bamboo Flooring Making, Bamboo Solid Bamboo Furniture Board Line
Model: MBXD-10
Blade Outdiameter: 80mm
Blade Inner diameter: 25.4mm
Blade Rotation Speed: 4900RPM
Processing thickness: 5 to 15 MM
Processing Width: 15 to 30MM
Feeding Speed: 46 M/MIN
Total Power: 28.5KW
Machine Weight: 1300KGS
Gross Weight: 1380KGS
Machine size: 4500*750*1100MM
Packing Size: 4600*850*1200MM
